  • 1.Introduction:
        FFG Glass Yarn is produced by twisting of strands formed from several hundred filaments in diameter of
        4-13 microns. The yarns are used for many applications as follows：
        ‧Electronic Grade Glass Fabric for PCB.
        ‧Braided Electrical Sleeving Products.
        ‧Paper and tape Reinforcement.
        ‧Axle Material for Grinding Wheels.
        ‧Materials for Electrical, Thermal Insulation, etc
  • 2. Features:
        ‧Outstanding Electrical Insulation Properties , Suitable for use with computer and Electronic Material.
        ‧High Tensile Strength ＆ Good Dimensional Stability.
        ‧High Heat , Chemical and Flame Resistance.
  • 3.Specification:
    • Heavy Yarn Products
      Product Type G75 G67 G50 G37 H110 H25 H18 K37 K18
      Filament Diameter (micron) 9 9 9 9 11 11 11 13 13
      Number of Filaments 400 400 600 800 200 800 1200 400 800
      Bobbin Type #531 #531 #531 #531 #315 #531 #531 #531/#730 #531/#730
      Tenacity(g/Tex) Min.50 Min.50 Min.50 Min.50 Min.50 Min.50 Min.50 Min.60 Min.50
      Moisture Content (%) Max.0.2 Max.0.2 Max.0.2 Max.0.2 Max.0.2 Max.0.2 Max.0.2 Max.0.2 Max.0.25
      Package Weight** (kg) A1 Avg 8.5 Avg 8.4 Avg 8.5 Avg 9.3 Avg 4.5 Avg 9.1 Avg 8.3 Avg 9.3 Avg 8.2

      (1)  The products conform to the RoHS request.
      (2)  Package Weight not include bobbin weight.
      (3)  Additional yarn count , binder spec. or usage are available upon request.

    • Fine Yarn Products
      Product Type BC1500 C1200 D900 D450 E225 E110 G150
      Filament Diameter (micron) 4 4.5 5 5 7 7 9
      Number of Filaments 100 100 100 200 200 400 200
      Bobbin Type #290 #290 #290 #310 #310 #531 #315
      Tenacity(g/Tex) Min.60 Min.60 Min.60 Min.60 Min.50 Min.50 Min.50
      Moisture Content (%) Max.0.4 Max.0.4 Max.0.3 Max.0.3 Max.0.2 Max.0.2 Max.0.2
      Package Weight** (kg) A1 Avg 0.36 Avg 0.46 Avg 1.0 Avg 1.7 Avg 3.5 Avg 4.5 Avg 4.5

      (1)  The products conform to the RoHS request.
      (2)  Package Weight not include bobbin weight.
      (3)  Additional yarn count , binder spec. or usage are available upon request.

  • DE YARN：
    Product Type DE300 DE150 DE100 DE75 DE50 DE37
    Filament Diameter (micron) 6 6 6 6 6 6
    Number of Filaments 200 400 600 800 1200 1600
    Bobbin Type #310 #315 #315 #531 #531 #531
    Tenacity(g/Tex) Min.50 Min.50 Min.50 Min.50 Min.50 Min.50
    Moisture Content (%) Max.0.2 Max.0.2 Max.0.2 Max.0.2 Max.0.2 Max.0.2
    Package Weight** (kg) A1 Avg 1.8 Avg 4.4 Avg 4.1 Avg 8.5 Avg 8.6 Avg 9.2

    (1)  The products conform to the RoHS request.
    (2)  Package Weight not include bobbin weight.
    (3)  Additional yarn count , binder spec. or usage are available upon request.

  • 4.Product Package：

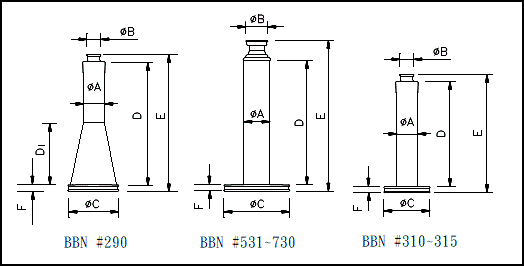

        Bobbin types：
        The various types of bobbins are shown in the following table.   mm (inch)
    Bobbin type A*
    (ID)    		 A*
    (OD)    		 B C D D1
    #290 60 (2.36) 66 (2.60) 41 (1.61) 100 (3.94) 320 (12.60) 95 (3.74)
    #310 60 (2.36) 66 (2.60) 41 (1.61) 140 (5.51) 320 (12.60) ---
    #315 60 (2.36) 66 (2.60) 45 (1.77) 155 (6.10) 296 (11.65) ---
    #530 70 (2.76) 78 (3.07) 64 (2.52) 198 (7.79) 380  (14.96) ---
    #531 70 (2.76) 78 (3.07) 64 (2.52) 198 (7.79) 380  (14.96) ---
    #600 70 (2.76) 78 (3.07) 64 (2.52) 174 (6.85) 385  (15.16) ---
    #630 83 (3.27) 88 (3.46) 63 (2.48) 203 (7.99) 380  (14.96) ---
    #730 83 (3.27) 91 (3.58) 64 (2.52) 202 (7.95) 374  (14.72) ---

    Bobbin type

    E

    F

    G**

    H**

    J**

    Empty bobbin
    weight (grams)

    #290

    362

    (14.25)

    18.6

    (0.73)

    120

    (4.72)

    180

    (7.09)

    300

    (11.81)

    290 +/- 5

    #310

    360

    (14.17)

    18.5

    (0.73)

    127

    (5.00)

    158

    (6.22)

    305

    (12.00)

    310 +/- 5

    #315

    337

    (13.27)

    18.5

    (0.73)

    142

    (5.59)

    155

    (6.10)

    284

    (11.18)

    310 +/- 5

    #530

    460

    (18.11)

    18.5

    (0.73)

    186

    (7.32)

    200

    (7.87)

    380

    (14.96)

    535 +/- 5

    #531

    435

    (17.13)

    18.5

    (0.73)

    186

    (7.32)

    200

    (7.87)

    380

    (14.96)

    535 +/- 5

    #600

    441

    (17.36)

    24.0

    (0.94)

    162

    (6.38)

    205

    (8.07)

    385

    (15.16)

    600 +/- 5

    #630

    446

    (17.56)

    18.3

    (0.72)

    186

    (7.32)

    200

    (7.87)

    380

    (14.96)

    630 +/- 10

    #730

    446

    (17.56)

    24.5

    (0.96)

    190

    (7.48)

    200

    (7.87)

    374

    (14.72)

    730 +/- 10

    NOTE:
        (1)  The material of bobbin is ABS.
        (2)  * A (ID) is inside diameter of barrel, A (OD) is outside diameter of barrel.

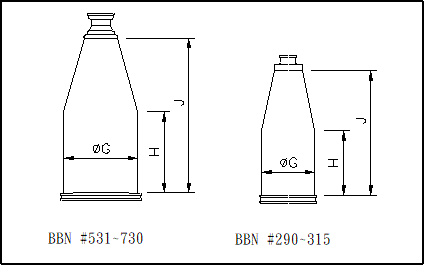

        (3)  ** Dimension “G”、 “H”、 “J”

  • 5.Packaging Information：
    Item Product Bobbin
    Type    		 Pallet Container of 40 feet
    (70%A1 & 30%A2)
    Number
    of
    Layer    		 Number
    of
    Bobbin    		 Dimension(mm)
    ( L x W x H )    		 Approx
    Net
    Weight
    A1 (kg)    		 Approx
    Gross
    Weight
    A1 (kg)    		 Number
    of
    Pallet    		 Net
    Weight
    (Ton)
    土5%     		Net
    Weight
    (Ton)
    土5%
    1 D450 #310 2 112 1308x1100x890 280~283 354~357 18 11.7 14.8
    3 168 1308x1100x1240 421~424 516~519 18
    2 D900 #290 2 136 1308x1100x890 172~174 245~247 18 7.3 10.3
    3 204 1308x1100x1240 259~261 356~358 18
    3 BC1500 #290 2 112 1310x1105x890 40 ~ 42 106~107.8 18 17 4.5
    3 168 1310x1105x1230 61 ~ 63 147~148.9 18
    4 E110 #531 2 60 1308X1100X1000 484~487 555~558 36 16.6 19.2
    5 G150 #315 2 92 1308x100x840 415~418 483~486 18 17.9 20.6
    3 138 1308x1100x1150 624~627 710~713 18
    6 G75 #530 2 60 1308x1100x1040 515~518 586~589 36 17.8 20.4
    #531 2 60 1308x1100X1000 515~518 586~589 36 17.8 20.4
    #600 2 64 1210x1020x1030 442~445 512~515 44 18.3 21.4
    #315 2 92 1308x1100x840 399~402 467~470 18 16.2 19.0
    3 138 1308x1100x1150 600~603 686~689 18
    7 G67 #531 2 60 1308x1100x1000 506~509 577~580 36 17.4 20.0
    8 G37 #531 2 60 1308x1100x1000 565~568 636~639 36 19.3 21.8
    #315 2 92 1308x1100x840 432~435 500~503 18 18.6 21.3
    3 138 1308x1100x1150 649~652 735~738 18
    9 DE75 #531 2 60 1308x1100x990 511~514 582~585 36 17.2 19.8
    #315 2 92 1308x1100x840 392~395 460~463 18 17.2 20.0
    3 138 1308x1100x1150 589~592 675~678 18
    10 DE50 #531 2 60 1308x1100x1040 527~530 598~601 36 18.1 20.7
    11 DE37 #513 2 60 1308x1100x1000 562~565 633~636 36 19.2 21.8
    #315 2 92 1308X1100X840 404~407 472~475 18 17.7 20.5
    3 138 1308x1100x1150 607~610 693~696 18
    12 DE100 #315 2 92 1308x1100x840 388~391 456~459 18 16.7 19.5
    3 138 1380x1100x1150 583~586 669~672 18
    13 DE150 #315 2 92 1308x1100x840 416~419 484~487 18 17.5 20.3
    3 138 1308x1100x1150 625~628 711~714 18
    14 C1200 #290 2 112 1310x1105x890 52 ~ 54 118~119.8 18 2.3 4.5
    3 168 1310x1105x1230 79 ~ 81 138~139.9 18
    15 H25 #530 2 60 1308x1100x1040 544~547 615~618 36 18.7 51.3
    16 H18 #530 2 60 1308x1100x1040 520~523 591~594 36 18.1 20.6
    17 DE300 #310 2 112 1310x1105x890 212~214 287.7~289.7 18 8.9 12.1
    3 168 1310x1105x1230 318~320 418.7~420.7 18
    18 H110 #315 2 92 1308x1100x840 423~426 491~494 18 17.8 20.6
    19 3 138 1308x1100x840 636~639 722~725 18

Fiber Glass Yarn is one of FFG's main products used as a raw material for electronic industry. Most common finished product usage include desktop computer, laptop computer, cellular phone, PDA and many more.It also has various usage in aerospace industry.


Fiber Glass Fabric Printed Circuit Board
PDA Sailplane
Projection Cloth Applications For Industrial Grade Fiber Glass
【 Insulation Tubes 】

The core of our company’s R&D is to keep developing new products and to improve and develop new sizing formula. Through the R&D in sizing formula, it has already labeled a good performance on tensile strength, tex, broken filaments and woven fabric function the best among all other products in the world. The certain system and organization facilitates in getting FULLTECH’S products the best competitive advantage among manufacturers both locally and abroad especially in the development of Electronic, special Industry and Aviation materials. We strive to keep challenged with such goals.

Product Type Electronic Grade Industrial Grade
Item
Market Product
G75、G67、G150、E225、E110、D450、D900
G37、H18、H25、DE50、DE100、H110
Objective
1. Electronic grade products continue to develop the special fine yarn and the low yardage product.
2. Coordinate loom high speed, development characteristic outstanding binder formula.
3. Industrial grade products depend on the customer demand to develop the special product and binder.
